HikVision 4 Ch 1080P – 20M Night vision – 500GB HDD:

The HikVision 4 Ch 1080P – 20M Night vision – 500GB HDD Kit Includes:

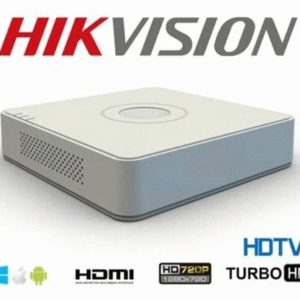

• 1 x Hikvision DS-7104HGHI-F1 4-Ch TURBO HD Embedded DVR. H.264, Analogue and HD-TVI video input, 1-Ch Audio input, HDMI and VGA output at up to 1920×1080P, 1x SATA interface, Mini 1U case, 12VDC, With Smartphone and PC viewing

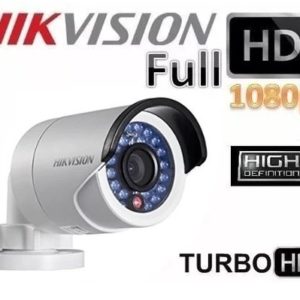

• 4 x Hikvision DS-2CE16D0T-IR HD1080P Turbo HD Bullet Camera. HD1080P Video Output, Adopt HDTVI Technology, True D/N, DNR, Smart IR, 20m IR Distance, IP66
• 1 x 500GB SATA Hard Drive
• 8 x BNC Plug 3Pcs
• 4 x DC plugs
• 1 x 12VDC 5A Power Supply
• 1 x 100m Cable RG59 Co-Axial
• No Screen





Camera Features:

• 2 Megapixel high-performance CMOS
• Analog HD output, up to 1080P resolution
• True Day/Night, Smart IR
• up to 20m IR distance
• IP66 weatherproof
• Angle of View: 82.2°(3.6mm)





• H.264 /H.264+& Dual-stream video compression

• Support both HD-TVI /analog and AHD cameras with
adaptive access
• Full channel recording at up to 1080P lite resolution
• HDMI and VGA output at up to 1920×1080P resolution
• Long transmission distance over coax cable
• Support 4ch synchronous playback at 720P resolution

• 1 channel Audio Input
• Video Compression H.264,H.264+
• Analog and HD-TVI video input 4-ch BNC interface (1.0Vp-p, 75 Ω)
• Support HDTVI inputs of 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
• Support AHD input of 720P/25Hz, 720P/30Hz
• support CVBS input
• Video Input Interface BNC (1.0 Vp-p, 75Ω)
• Audio Compression G.711u
• Audio Input Interface RCA (2.0 Vp-p, 1 kΩ)
• Two-way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
• HDMI/VGA Output 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
• Recording resolution when 1080p Lite mode not enabled 720p/WD1/4CIF/VGA/CIF
• Recording resoultion when 1080p Lite mode enabled 1080p lite/720p/WD1/4CIF/VGA/CIF
• For 720p stream access 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
• For 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
• Video Bit Rate 32 Kbps ~ 4 Mbps
• Stream Type: Video/Video&Audio
• Audio Output: 1-ch RCA(Linear, 1kΩ)
• Audio Bit Rate: 64kbps
• Dual Stream Supported
• Playback Resolution: 1080p lite/720p/WD1/4CIF/VGA/CIF
• Synchronous Playback 4-ch
• Network management 32 Remote connections
• Network protocols: TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• HDD Interface Type: 1 SATA Interface
• Capacity up to 6 TB capacity for each disk
• External Network Interface 1; 10M / 100M self-adaptive Ethernet interface
• 2 USB 2.0 Interfaces
• Includes Smartphone and PC remote viewing
