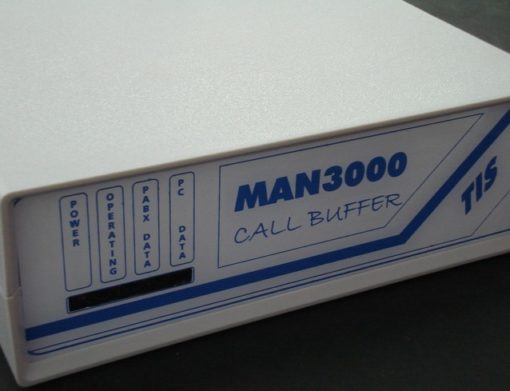

Man3000 DUAL LAN IP Buffer Box-Man3000 V8
The Man3000 DUAL LAN/IP Buffer Box-Man3000 V8 is a 32 000 call buffer which utilises flash memory. It has two (2) IP ports as well as two (2) serial ports. Data can be sent or received via either LAN or Serial port. The buffer comes
with a sealed lead-acid battery backup. Includes one year Man3000
Software license. Can connect to Man3000DHS hosted service.
For use on PABX’s that do not have a serial SMDR Port for sending call records, and instead have an IP Interface.
For connection to the Man3000 Software via your LAN (Local Area Network), and NOT via Serial Comms.
Can operate on separate VPN’s.
You won’t loose Telephone call Records if there’s a power failure.
You won’t lose Telephone Call Records if the PC is offline.
3 Days Battery Back Up.
Stores approximately 10000 Call Records.
The MAN3000 Dual LAN/IP Buffer Box will be installed between the PABX and a Windows based PC using the Local Area Network medium.
The Dual LAN/IP Buffer Box Communicates to the PABX and the PC via TCP/IP. There is no serial comms available.
Redirector Software is supplied to communicate from a PC to the Dual LAN/IP Buffer Box.
Device Installer Software is supplied for programming the Dual LAN/IP Buffer to work on your Network.
The Software can store virtually unlimited Telephone Call Records.
Approximately 10000 call records can be stored in the Dual LAN/IP Buffer.
The Buffer Box is a temporary storage device, thus a dedicated PC is not required.
NOTE: WILL NOT WORK ON THESE SWITCHES: NORTEL BCM, AVAYA OFFICE OR ASTERIX
